Hybrid Dc to Dc

Discussion in '3rd Gen Tundras (2022+)' started by arinh, May 27, 2024.

  1. May 27, 2024 at 10:47 AM
    #1
    arinh

    arinh [OP] New Member

    Joined:
    May 27, 2024
    Member:
    #117508
    Messages:
    2
    First Name:
    Arin
    Vehicle:
    2023 Tundra Limited Hybrid TRD
    Hey all,

    I'm new here and looking to provide a more robust charging system for my portable battery in my Tune M1 truck camper on my Tundra. I am doing a week long trip here soon in the next month. I have a 200W solar panel but when roof mounted the output is only 50% and unreliable if the truck isn't in good sunlight.

    So my only next option is to consider a charging setup while I'm driving from site to site.

    Due to the modified sine wave inverter setup on the Toyota vehicles I can't find a way to charge my Ecoflow Delta 2 Max battery by AC in the truck bed. It seems modification is the only route other than plugging into 12V cigarette lighter up front (limited to 100w draw and only available in the cab, not ideal when you need to run your fridge at the same time plus these batteries are heavy).

    I can't seem to find any information on how I can get power to the truck cab for Hybrid systems. I don't quite understand the hybrid powertrain enough or find any information online to figure out what is possible / safe to do.

    I've heard of a couple DC to DC products like:
    Victron Orion
    Ecoflow alternator charger
    Pectron's new 500W charger

    Has anyone safely used any of these products with a Hybrid truck?
    I noticed the 12v battery is in the backseat of the Tundra.

    Last edited: May 27, 2024
    CarolinaBlue likes this.
  2. May 28, 2024 at 9:52 AM
    #2
    teab

    teab 2023 Platinum w/ PRO bits

    Joined:
    Mar 22, 2023
    Member:
    #94291
    Messages:
    559
    First Name:
    Ty
    Denver
    Vehicle:
    2023 Platinum MGM 6.5
    TRD Pro Wheels, Go Rhino D6, Airlift bags/compressor, Talons Alum Cat Shield, Cheap-o Amazon Mud Flaps, Fastop Tonneau/Topper, Rear TRD Pro Shocks
    If you're asking how you can use the hybrid battery for a DC-DC charger you are SOL there. You're not going to find an off the self product that will work with the 288volt hybrid battery architecture.

    If you would have bought a F-150 hybrid it would have had all sorts of charging options via 120v AC power. The Tundra engineers really screwed the pooch on making the hybrid stand out or actually use the system for something other than a little extra power as you start to accelerate.

    Main reason I didn't go with the hybrid is because added complexity, no unique features to maximize that battery, and the big one was loss of under seat storage in the back.

    You can install a DC-DC charger but it will be off the trucks 12v system and you should tap that off the alternator and size your conductor based on the length where the charger is installed and the current the charger is going to pull.

    Honestly in the long run you would be money and time ahead with a small 2000-ish watt generator to just charge your batteries with say a 40 to 60 amp AC charger in the rig and just fire up the generator to charge when you need to. waaaaaay less work and money, but just one more thing to bring along. This is what I do when I don't get enough solar or just don't want to fold out the panels. With a 100 amp-hr LiFEpo4 battery it will charge 50 amps (50%) in one hour with the lithium charger I have. 50 amp-hr's usually gets me about a day and a half of run time on my 12v fridge in the camper.

  3. May 28, 2024 at 9:58 AM
    #3
    teab

    teab 2023 Platinum w/ PRO bits

    Joined:
    Mar 22, 2023
    Member:
    #94291
    Messages:
    559
    First Name:
    Ty
    Denver
    Vehicle:
    2023 Platinum MGM 6.5
    TRD Pro Wheels, Go Rhino D6, Airlift bags/compressor, Talons Alum Cat Shield, Cheap-o Amazon Mud Flaps, Fastop Tonneau/Topper, Rear TRD Pro Shocks
  4. May 29, 2024 at 8:33 AM
    #4
    arinh

    arinh [OP] New Member

    Joined:
    May 27, 2024
    Member:
    #117508
    Messages:
    2
    First Name:
    Arin
    Vehicle:
    2023 Tundra Limited Hybrid TRD
    I thought the hybrid systems didn't have an alternator? Yeah if I did my plan was to connect up to 12V battery behind the drive back seat but can't find any information if it is sustainable to do so as I've heard this 12V battery is considered on the smaller side and unsure if the system is charged equivalently to the non-hybrid alternator setup. My portable battery is located in the truck bed powering my 12V fridge.

  5. May 29, 2024 at 11:15 AM
    #5
    EugeneTRD

    EugeneTRD New Member

    Joined:
    Jan 21, 2024
    Member:
    #110633
    Messages:
    6
    Gender:
    Male
    I just went through this process trying to figure out how to do a dc to dc charger for my trailer with the hybrid. Using the 12v system. Battery charge and 14v output is via the hybrid motor rather than the alternator.

    I ended up using the SDHQ kit to move the battery access under the hood. Putting everything under the rear seat looked like a pain and not safe. I then ran the 12v feed to the dc to dc charger with a signaling wire to the charger and to a relay so my feed to the charger wasn’t always hot. I am using a Garmin PowerSwitch to control all my accessories and the signaling wire.


    CarolinaBlue and Colotundie like this.
  6. May 29, 2024 at 11:37 AM
    #6
    gesekee19

    gesekee19 New Member

    Joined:
    Mar 15, 2024
    Member:
    #113707
    Messages:
    19
    Gender:
    Male
    Have you looked into the Ecoflow Alternator Charger system? Sounds like it could work with the hybrid 12v battery under the rear seat

  7. May 31, 2024 at 2:36 PM
    #7
    Fillabuster

    Fillabuster New Member

    Joined:
    Aug 6, 2023
    Member:
    #101623
    Messages:
    8
    Gender:
    Male
    South Pasadena
    Vehicle:
    2023 Lunar Rock Tundra TRD OR Limited
    Go Rhino E1 Running Boards, GFC Topper
    Doesn’t quite answer your original question, but here’s another DC/DC + Solar option. I don’t own this (yet), but doing some researching to see if the charger will work with my Anker battery.
    https://www.amazon.com/dp/B0CTMH3V7J featured in https://youtu.be/NgA_Ou0ksMg?si=wcVutCbXsNQjRnOs

    Also researching what the stock alternator output/usage is to see if I’d need to upgrade it.

    The Ecoflow DC/DC charger looks slick, but it’s pricy, I’m not sure if the cable would reach/easily slip between my truck bed and camper shell, and I’d have to get a compatible battery.

    Watching this thread to see what you end up doing :)

  8. Jun 3, 2024 at 6:00 PM
    #8
    GO.XPLRE

    GO.XPLRE IG: @go.xplre

    Joined:
    Jul 20, 2021
    Member:
    #65790
    Messages:
    106
    26.579599, -111.754213
    Vehicle:
    ‘22 TRDP

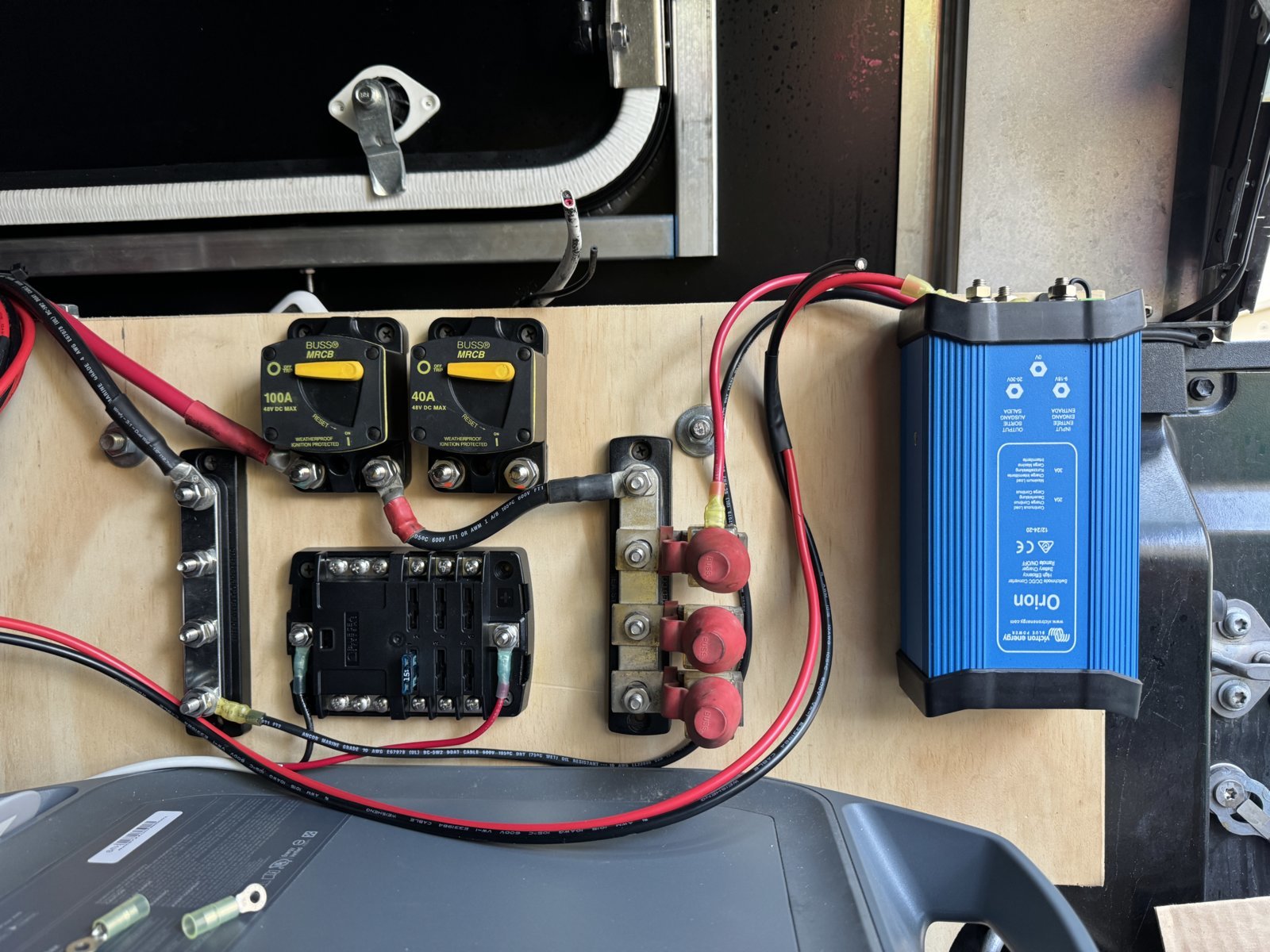

    OP- I’m running the same DC to DC charger (Victron Energy Orion 12/24-Volt 20 amp DC-DC Converter Non-Isolated) on my hybrid. Ran a 2 AWG from the factory 12V battery to the back of my camper with some inline fuses and breakers (Bussman). I do have a trigger signal from my Spod that only turns it on while the engine is running. It’s been installed for about a year now with no issues.

    There’s cheaper 12/24 converters available but I’d stay with a trusted unit like the Victron.


    CarolinaBlue likes this.
  9. Aug 9, 2024 at 4:25 PM
    #9
    KY2CO

    KY2CO New Member

    Joined:
    Mar 8, 2023
    Member:
    #93435
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2023 Tundra
    Arinh, what setup did you end up going with? I have the Tune on a hybrid Tundra as well.

    Currently running the Delta 2 with a 100w fold out solar panel, but looking to upgrade to the Delta 2 Max with roof mounted solar and a car charging setup.

    CarolinaBlue likes this.
  10. Oct 16, 2024 at 1:38 PM
    #10
    CarolinaBlue

    CarolinaBlue New Member

    Joined:
    Jun 30, 2019
    Member:
    #32656
    Messages:
    5
    Gender:
    Male

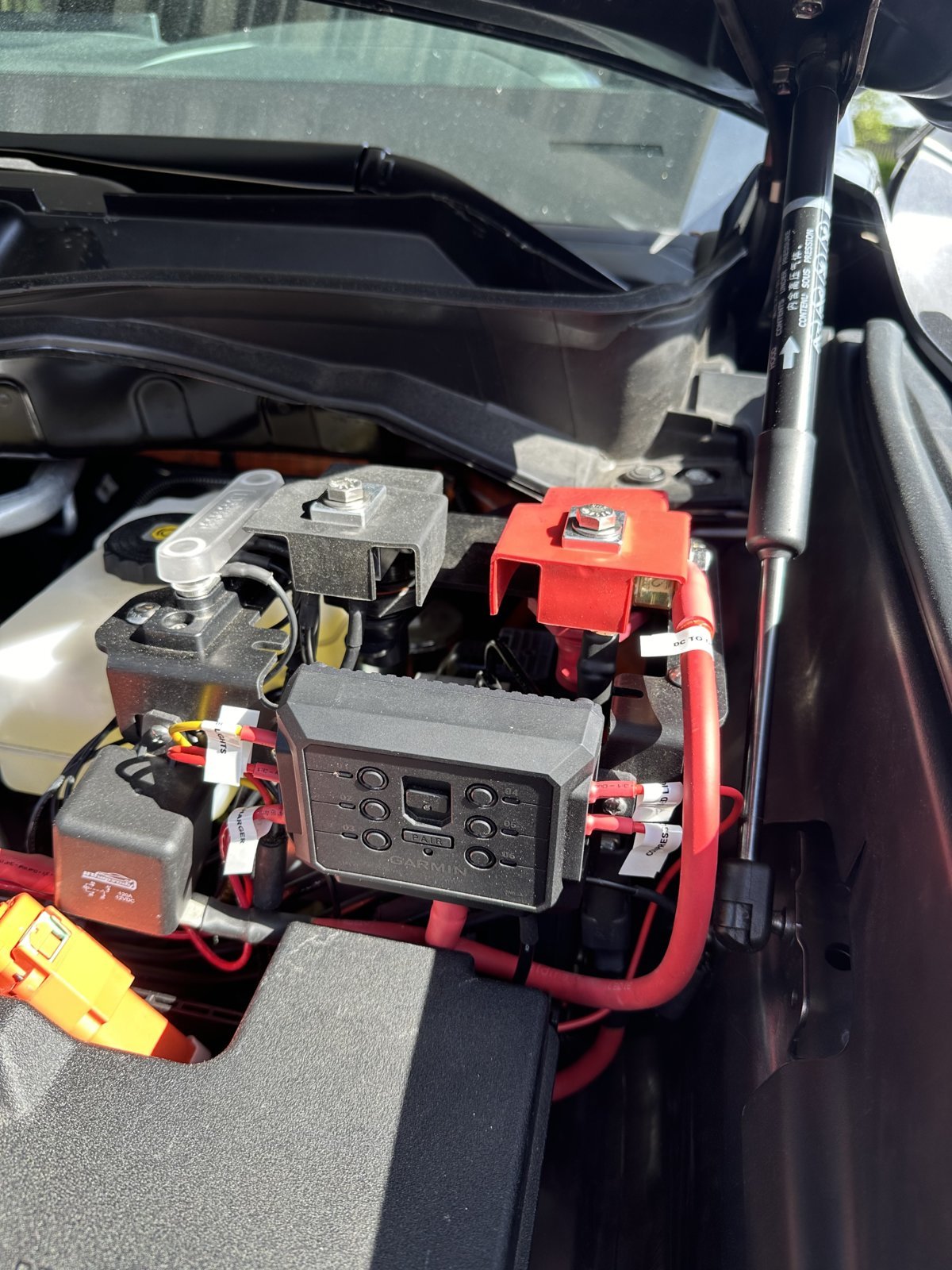

    Can you post more pics of your install of the SDHQ kit. Particularly the connectors thru the firewall of the engine bay and the cab. I see the kit requires drilling and I'm trying to get a better idea where its required? Thanks.

  11. Oct 16, 2024 at 8:55 PM
    #11
    EugeneTRD

    EugeneTRD New Member

    Joined:
    Jan 21, 2024
    Member:
    #110633
    Messages:
    6
    Gender:
    Male

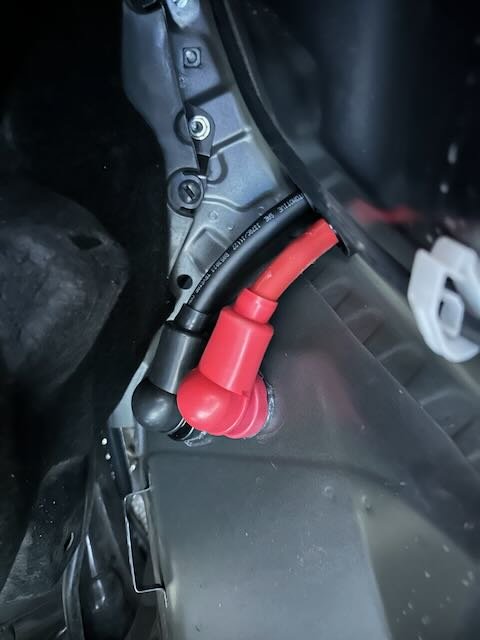

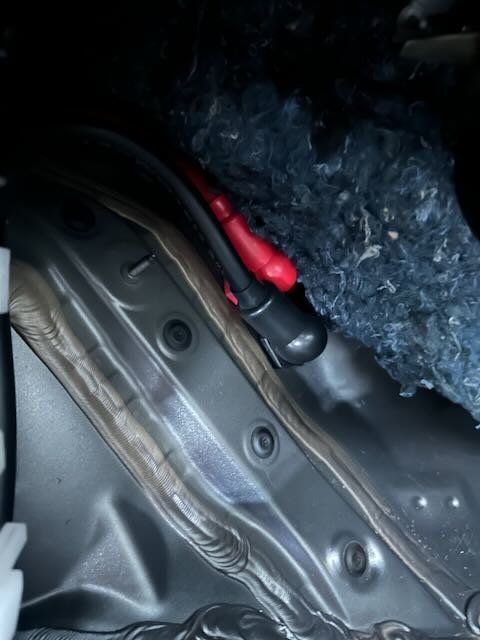

    With the SDHQ kit, you drill two sets of pass-throughs. One under the driver's foot well into the front fender well and from there another set on the other side of the firewall right behind the master cylinder. The wires pass underneath the felt fender liner. Some templates come in the kit to get these wholes cut in the precise location. I recommend using new hole saws to make the most accurate cut and a file to clean up the edges. Additionally, having an angle attachment or right-angle drill will be very helpful in getting the foot well holes cut. Either way, it's very nerve-racking cutting 1.5" holes in your 60K+ truck but it's not too technical of an install. I also recommend doing it on a weekday so you can call up SDHQ if you have any questions. They are super helpful if you have any questions.


    CarolinaBlue likes this.
