GEN 3 (2022+) Wheels and Tires Photo thread

The difference in offset is 25mm minus 12mm or 13mm, which equals just over 1/2". You will have that much more poke due to the rim. Hopefully your KO2's are a bit skinnier and you won't gain the full 1/2".
This assumes @Wood-Dro ICONs are also 9" wide.
Looking forward to seeing how yours looks with the AGP's!



Stock 2023 Tundra TRD Pro


2023 Tundra TRD Pro with Toyo Open Country AT3 35x12.5R18 on stock rims. No lift or level kit.



@donproline
If ever a truck should have come stock with 35's, it's this one. That just looks proper.



@FNWheels

Dustin I’m reaching out to you via email - looking to get another set of wheels - from arrampico@gmail.com

Can you check it out?

Thanks!



Thank you! I will respond to your email right now.



I unbolted the fender liner brace and cut off the crash/ horn on the body mount. Then pinned back the fender liner. Also pinned the front liner forward too so it clears everything by a couple inches now at full lock compressed.



Before: stock TRD OR wheels & tires

After: TRD Pro wheels with General Grabber ATX 275/70R18 (SL)



Agreed!!



This is the exact look I am looking for but I have 18 inch wheels, does anyone know how I would convert that?



I got 18X9.5 +40 wheels for my 2024 tundra SR5 stock. What is the biggest all terrain tire size will fit without rubbing (no lift nor leveling).
Thanks!!



Use this tool,



a 295/65/20 is a hard one to directly convert to an 18” wheel. 295/70/18 is the same width but almost an inch shorter. 295/75/18 is an option but not sure anyone making that size.
285/75/18 will get you the height but 10mm narrower.
There are a few companies making 35x11.5x18 tires which would be your closest conversion.



Kind of wish I didn’t have the digital rear view mirror, I wanted a smart cap so badly. I know it kind of works with a smart cap but I’ve really been enjoying the digital mirror. Truck looks really good with the smart cap!

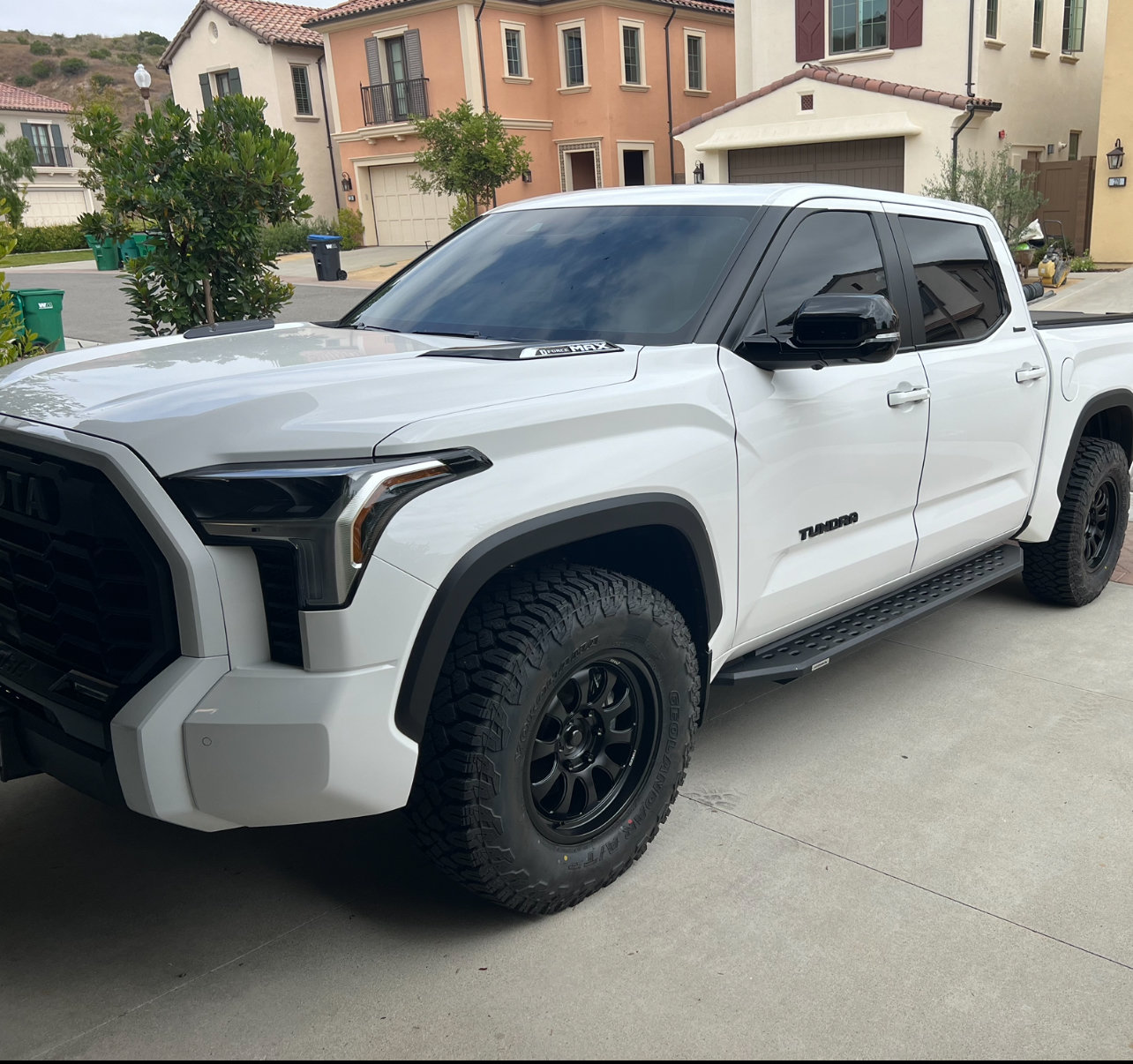

295/70/18 ko2 on agp pro rep wheels 18x9 +12.
Stock suspension. A little poke but not too much. Some rubbing on the front mud guards which I will remove and pin the lining back as everyone does.
Customer service at agp was very good btw.



1 more pic



Out of curiosity how much are the agp pro replicas? I ended up getting the OEM pro wheels on FB marketplace for an insanely good deal.



Love the wheel color choice.



gents, i'm reading and reading.. and I'm reading myself into a hole, I think.

Stock suspension, 21' platinum with the variable suspension.. what tyre can I fit on a 18x9 +12 wheel? I don't reckon a new suspension is going to be in the cards for me for a minute.



2.75” RC Level

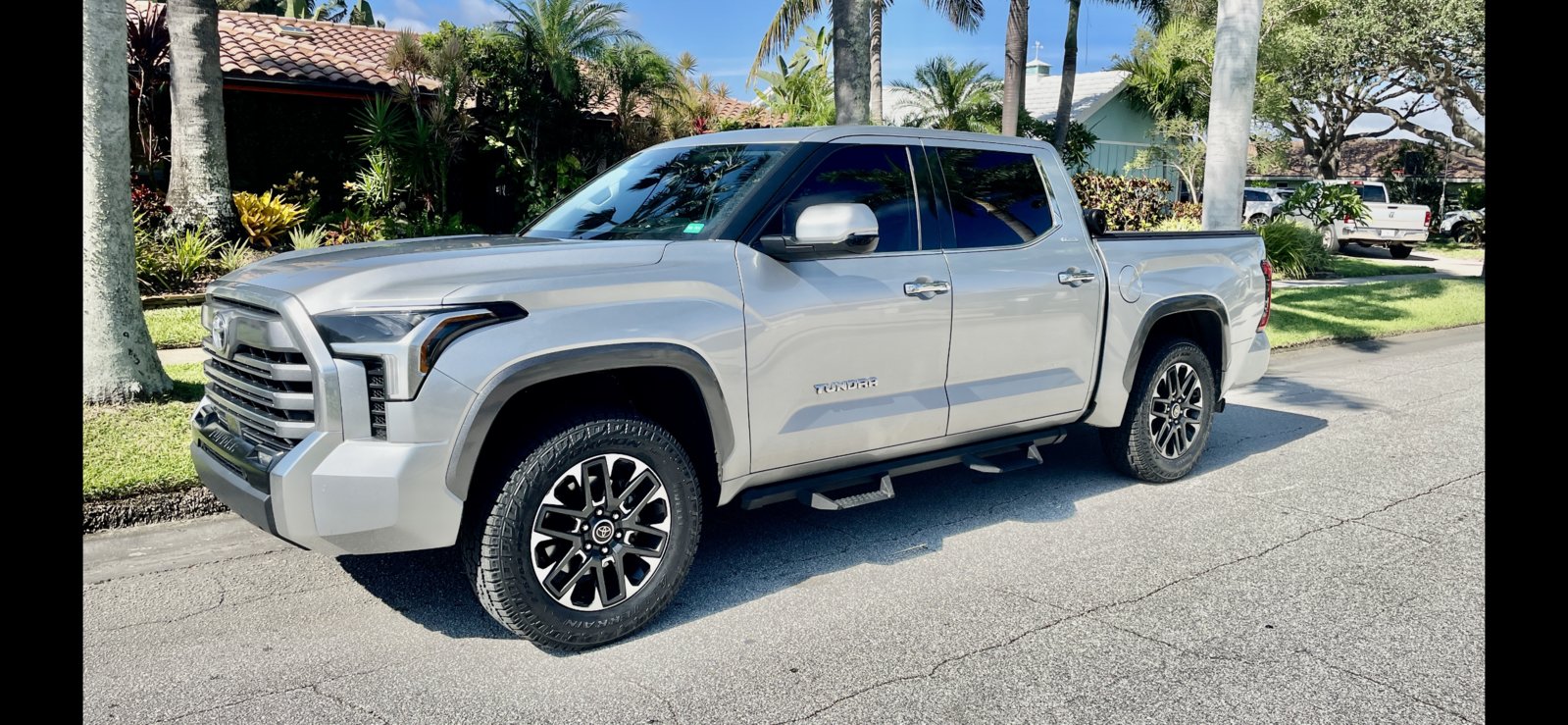

275/65R20 Pirelli AT+

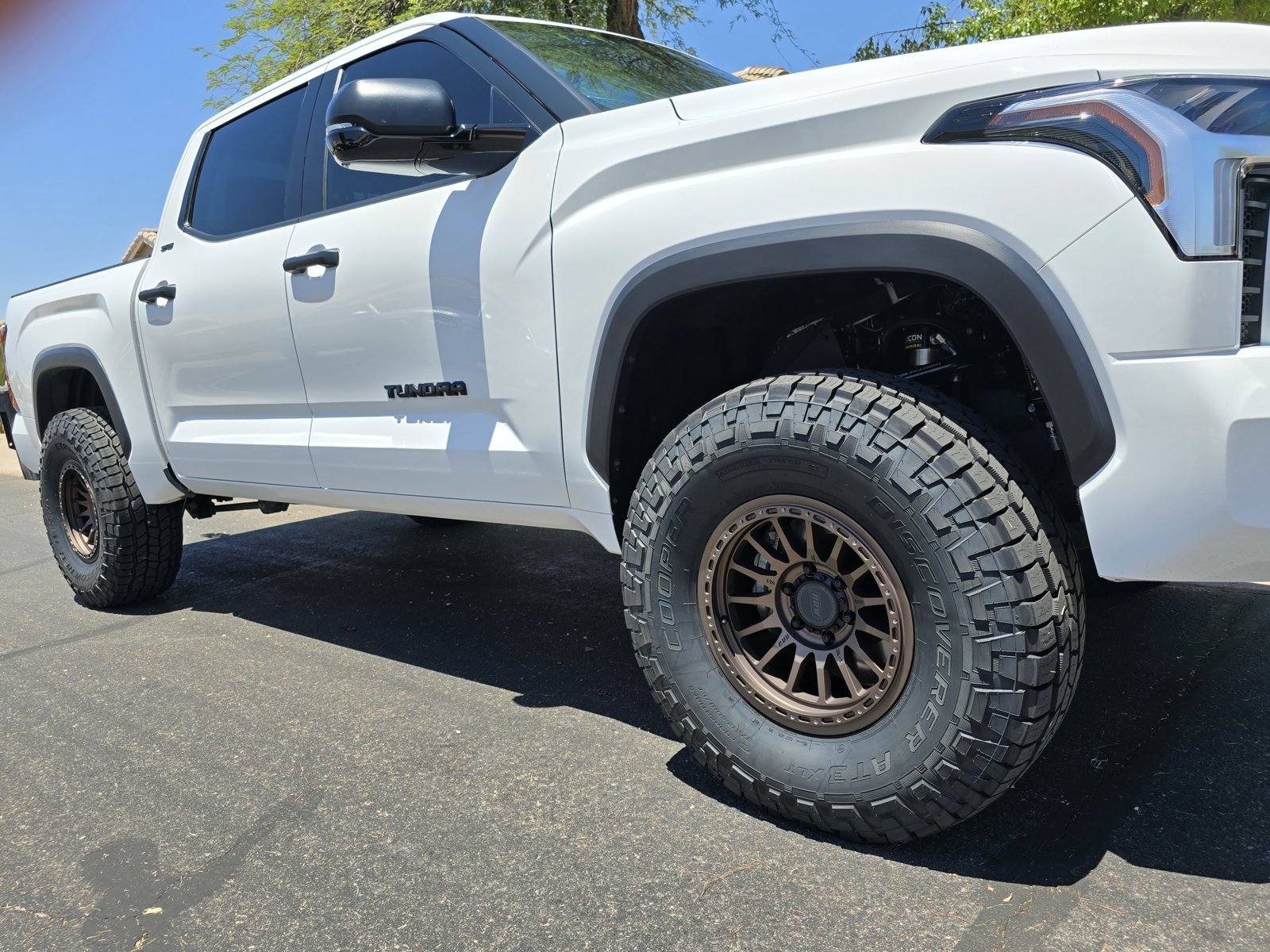

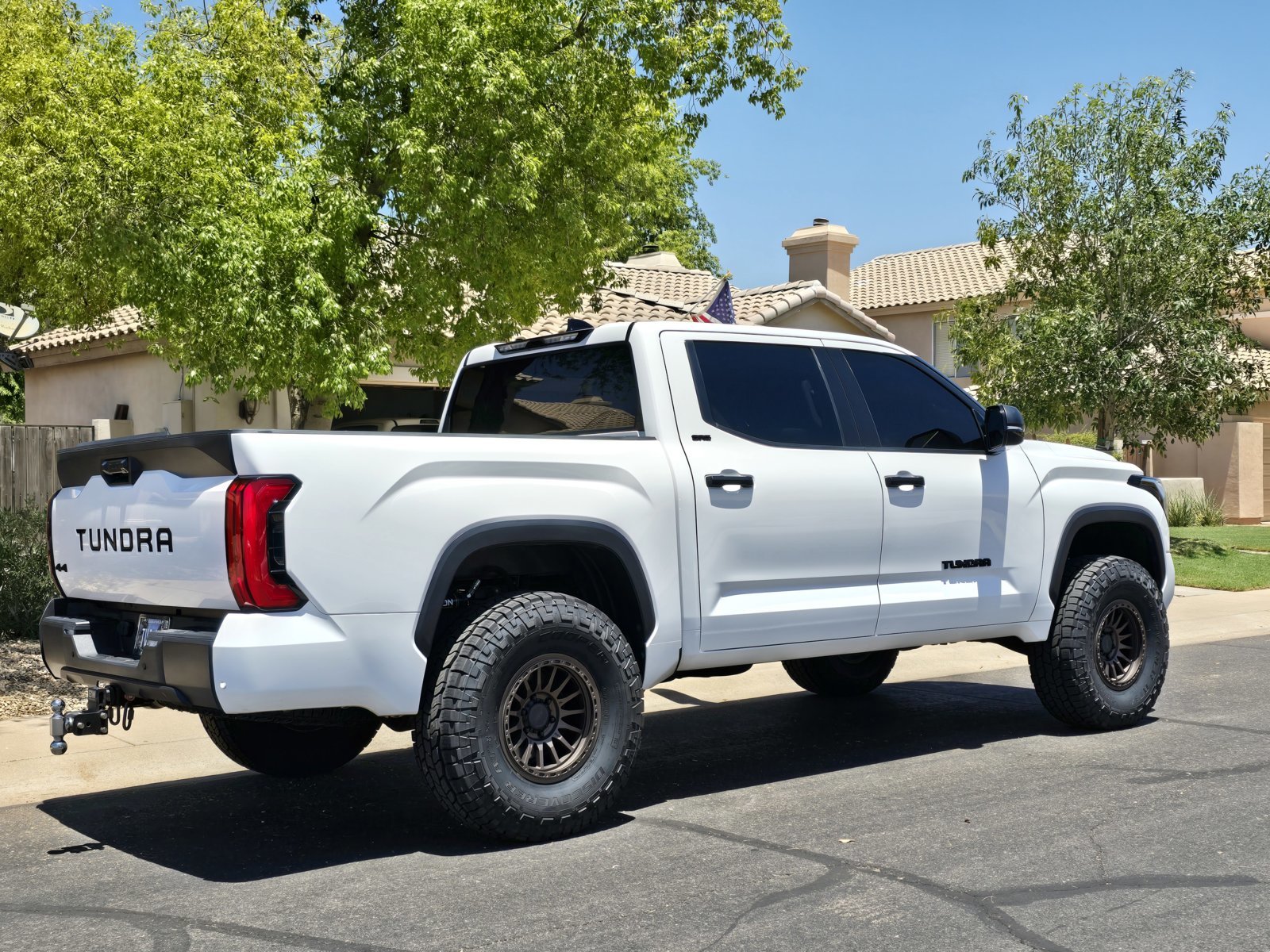

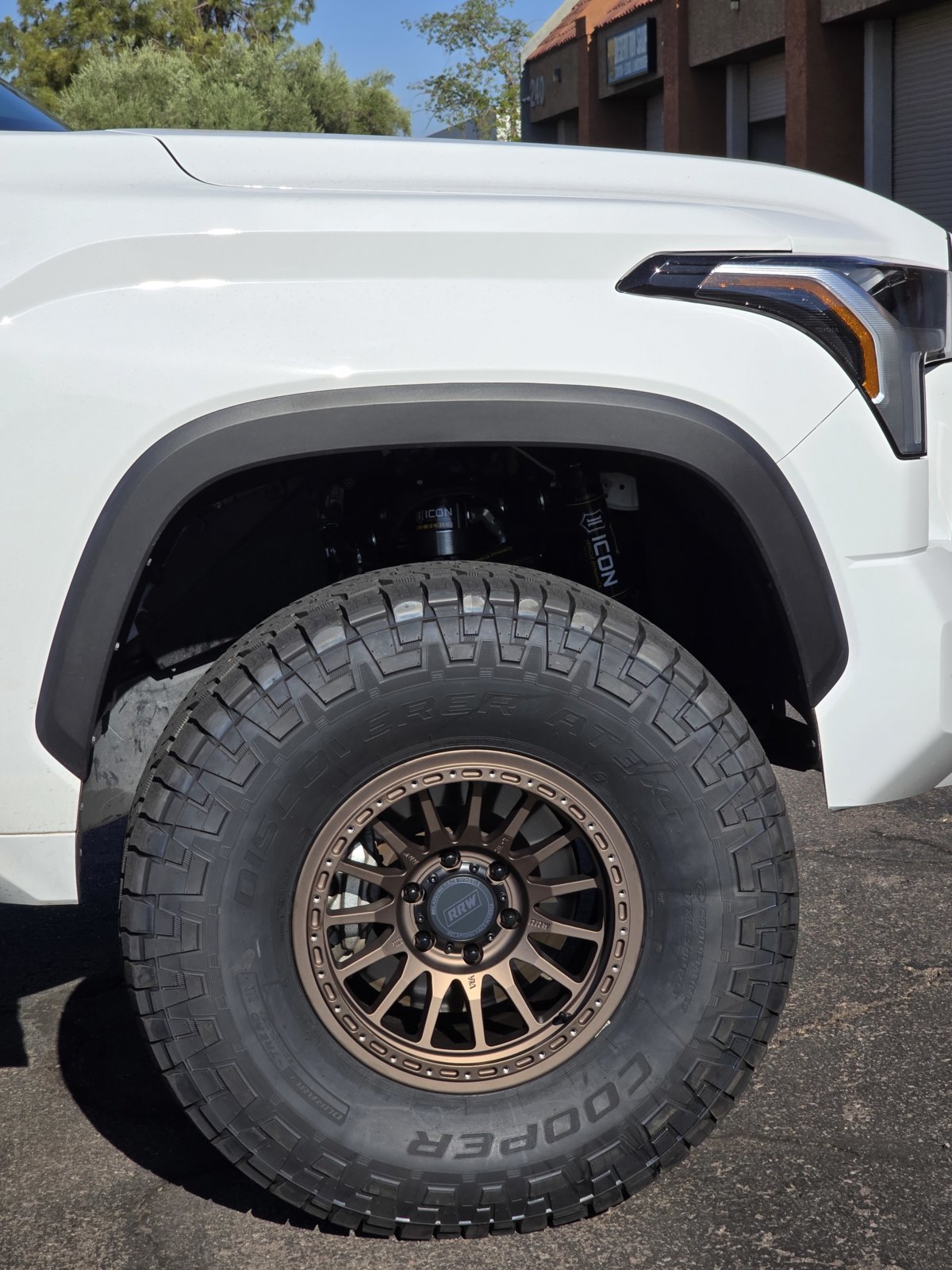

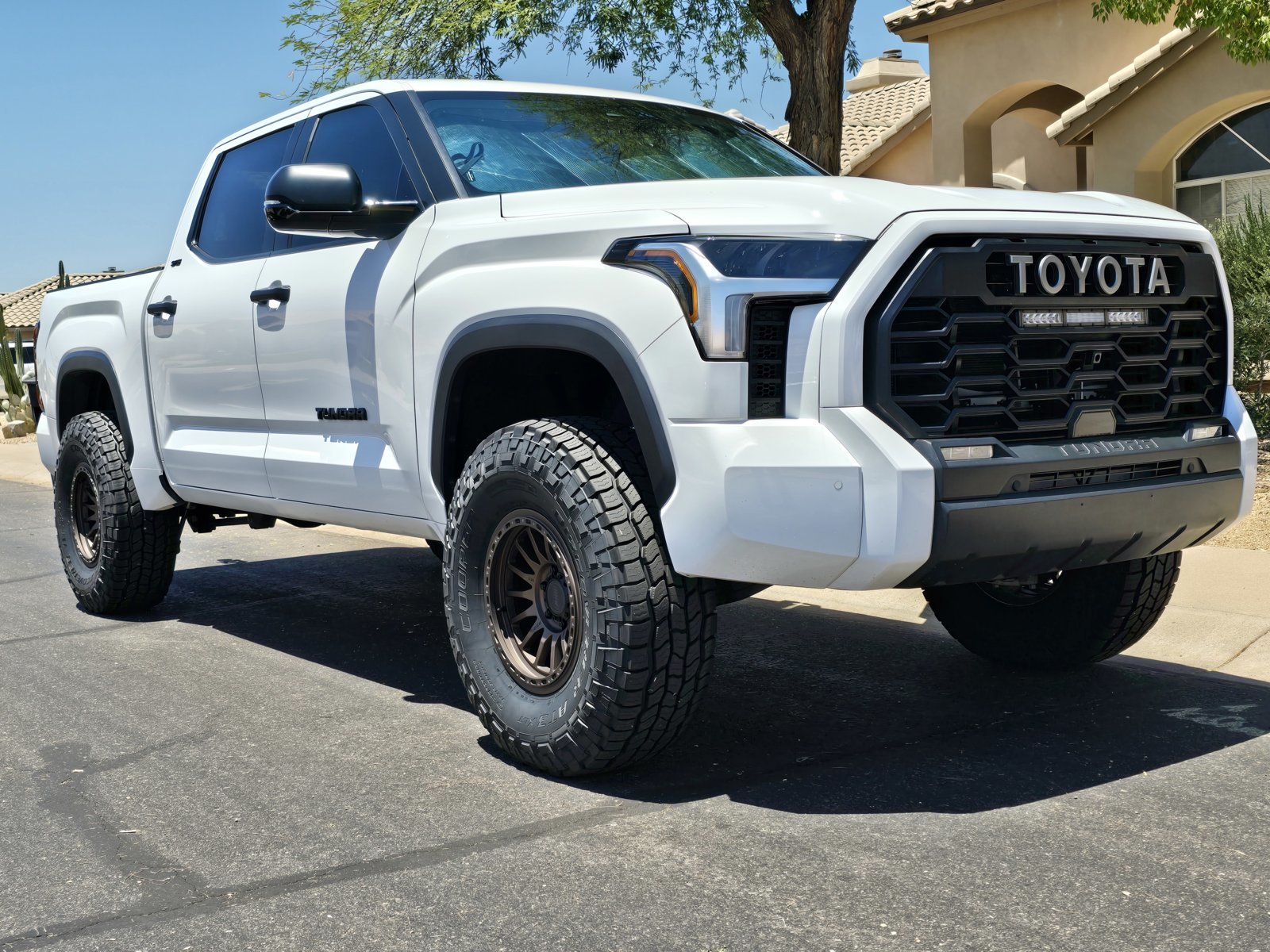

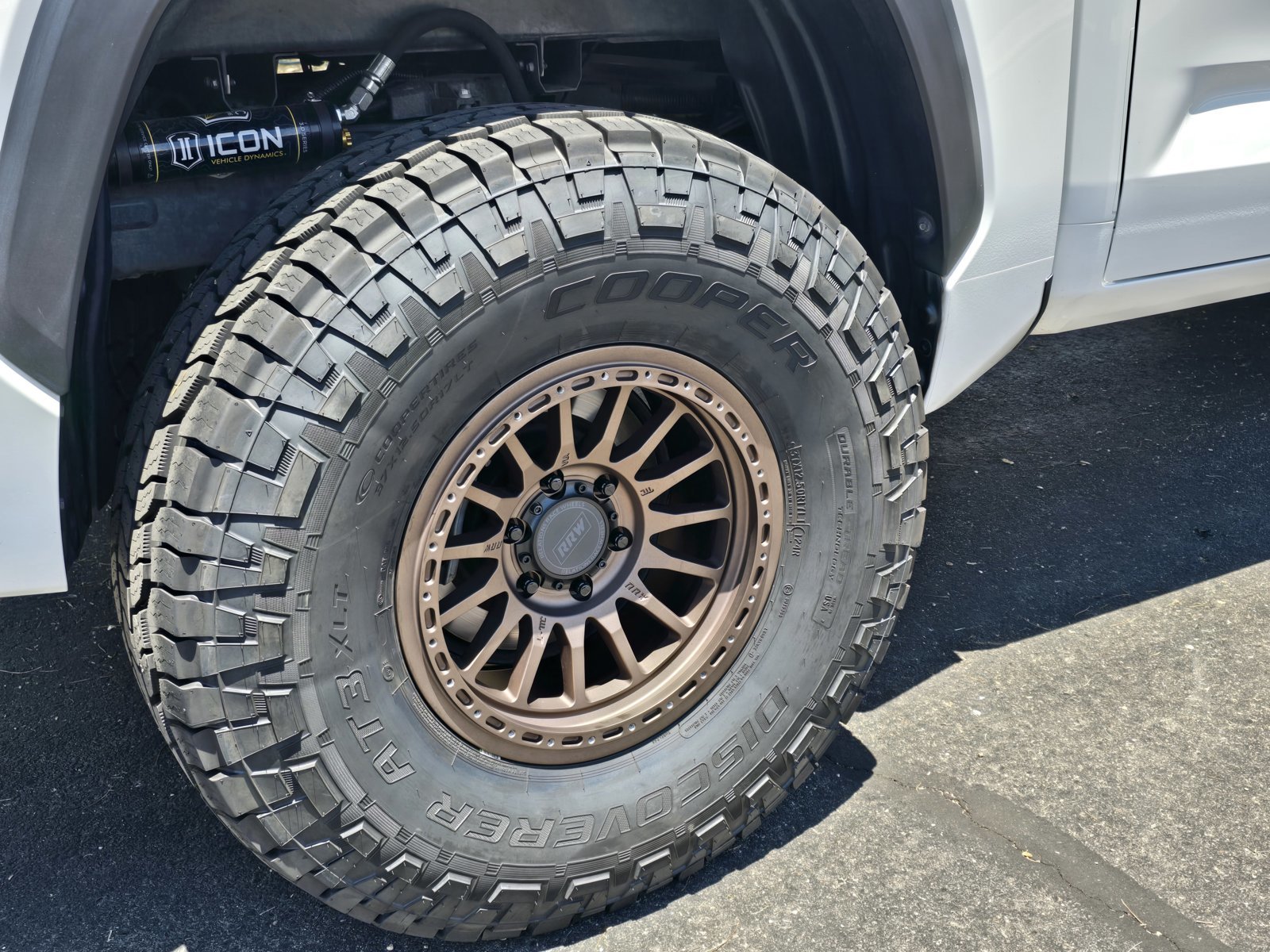

Icon 3.ohs with 37" cooper's on 17" rrw



Nice to see that 17” wheels will fit. I’ve been thinking about getting some 17s with a big meaty tire. Was going to ask if anyone was running 17s or knew they would fit on the truck.

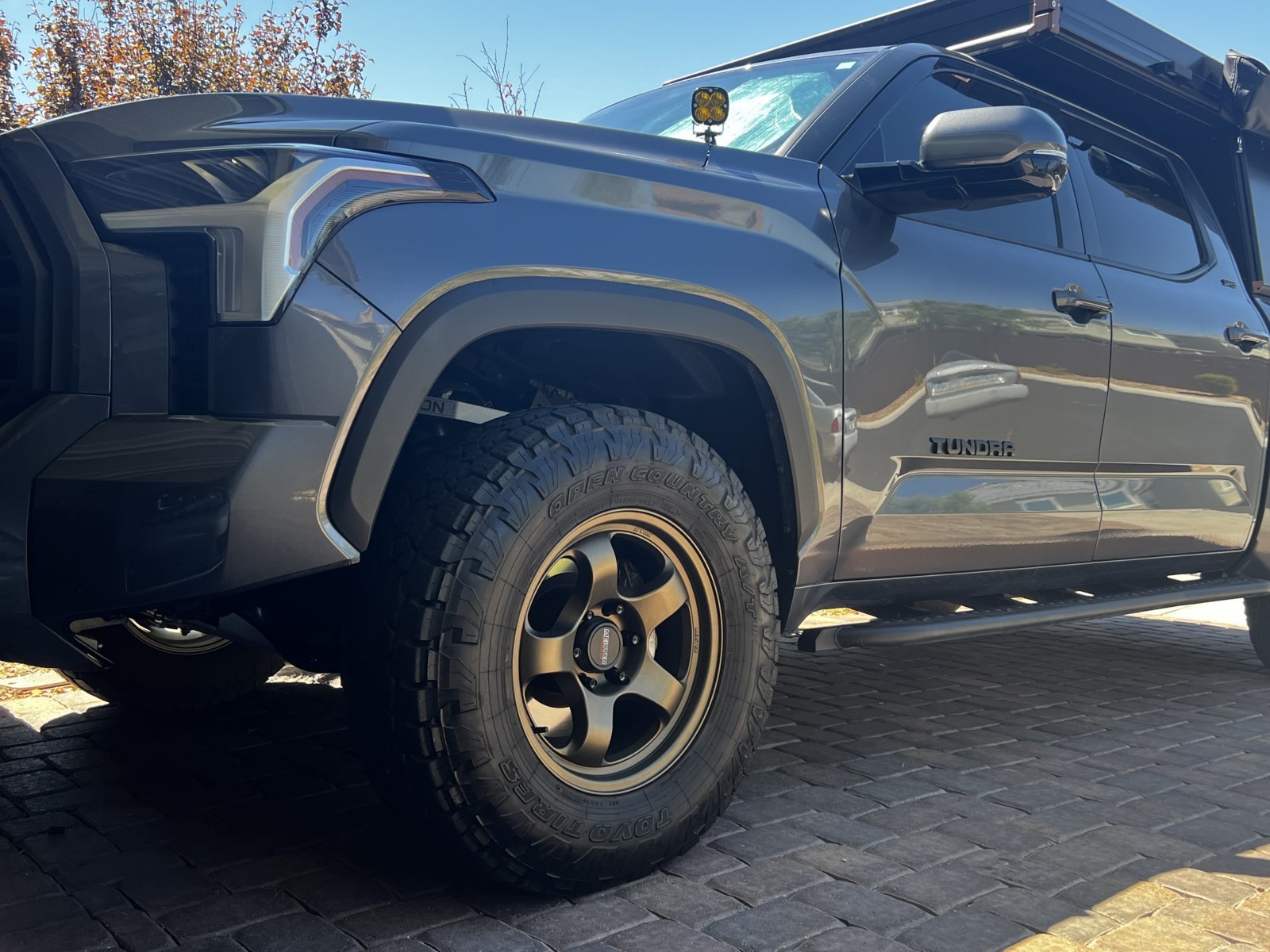

Works 18x9 +18 wrapped in 295 toyos



I’m running 17s (method 314s +25 offset) with some toyo open country AT3s. 17s fit great but just be aware that when they are balancing they need to place the weights properly so they don’t rub on the calipers. But 17s fit and definitely look good. I’m running stock suspension currently with a 34” tire but might lift down the road and go to 37s. These trucks look real good lifted with 37s



Quick wash today after alignment.



I’m going for another alignment tomorrow. Did you set your toe close to 0? Mine was within factory spec and I’m getting feathering on the outside edge of my wildpeaks



.004 well see how it fares



Titan 7 ATK-1 wheels. 18x8.5 with +20 offset. Yokohama AT/XD 295-70-18.



Factory TRD OR wheels and new nitto recon grapplers 275/65/20. These are SL. Ride great, no more slop, no noticeable sound increase. The factory AT3Wa’s are neutered down to 9/32 new and are highway orientated. Pathetically weak tires, I got a flat 43 miles in and the screw barely pierced the tread, and it was leaking like a siv. I normally change tires and batteries immediately and glad I did. Added rekgen mud flaps also and gorhino steps



My tires are almost $2,000 to replace where I live and the feathering is starting to make the tires louder. It’s minimal but I’ve rotated them twice in less than 5,000 miles.



Looks great! No lift or level?
Pretty sure you're size is 275/65/20, just a tick over 34" tall. That's the size and exact tire I'm going with. Not happy with my Mildpeaks either.
(Doing the math a 275/75/20 comes out about 36-1/4".)
